Introduction

Installing solar panels on a roof is always a significant undertaking, but when the roof is made of cellular polycarbonate, the challenge reaches a whole new level. This guide will explore the unique difficulties presented by polycarbonate roofs and provide solutions for a successful solar panel installation.

The Challenges of Polycarbonate Roofs

  1. Steepness: Steep angles make it difficult to maintain secure footing.
  2. Fragility: Cellular polycarbonate can easily collapse under direct pressure.
  3. Sensitivity: Even light contact can leave visible marks or damage.
  4. Pressure Points: Excessive pressure can cause the material to cave in or crack.
  5. Mounting Complexity: Proper attachment points require careful planning to prevent leaks and injuries.
  6. Slippery Surface: The smooth texture of polycarbonate can be treacherous.
  7. Transparency: Any installation flaws are visible from below, demanding meticulous work.

Despite these challenges, there are situations where a polycarbonate roof may be the only viable option for solar panel installation. Let’s explore how to approach this task safely and effectively.

Safety Precautions

Before beginning the installation, it’s crucial to implement proper safety measures:

  1. Weight Distribution: Use large, smooth surfaces to distribute weight. A minimum area of 0.6 square meters is recommended per person. Avoid rough materials like OSB; instead, opt for smooth PVC sheets or similar alternatives.

  2. Careful Handling: Never drop or throw tools or materials onto the roof surface. Even small items like bolts can cause significant damage.

  3. Proper Footwear: Wear soft-soled shoes with excellent grip to minimize the risk of slipping or damaging the roof.

Installation Method

The installation method for solar panels on a polycarbonate roof is similar to that used for slate or tile roofs, with some crucial modifications:

  1. Mounting Hardware: Use a combination of threaded rods, rubber seals, and nuts for secure attachment.

  2. Specialized Washers: Employ mushroom-shaped washers designed for polycarbonate to prevent leaks.

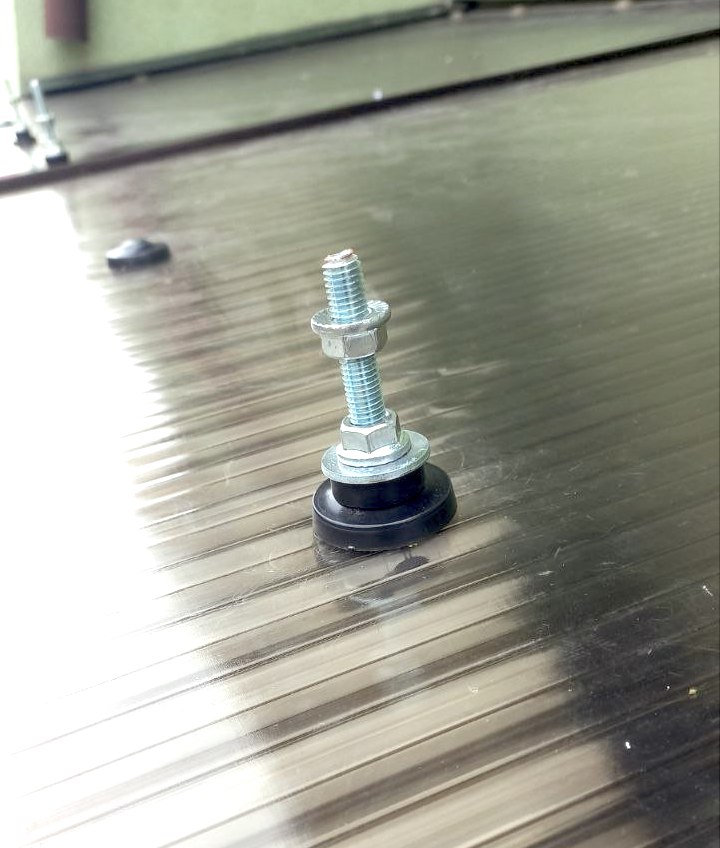

Installation of solar panels on a polycarbonate roof using mushroom washers designed for polycarbonate

  1. Frame Attachment: For steel frame structures, drill through completely and use threaded inserts on the underside, replacing standard wood screws with cut-to-size threaded rods.

  2. Profile Installation: Once the mounting points are secure, install the solar panel mounting profiles as you would on a standard roof.

Additional Considerations

  1. Visibility Advantage: The transparent nature of polycarbonate allows for easier identification of support beams or trusses, simplifying the mounting process.

  2. Precision Required: Given the visibility of the underside, ensure all cable management and installation details are neat and professional.

  3. Weather Sealing: Pay extra attention to waterproofing around mounting points to prevent any potential leaks.

Conclusion

Installing solar panels on a polycarbonate roof is undoubtedly challenging, but with the right approach, it’s entirely feasible. By following these guidelines and prioritizing safety, you can successfully harness solar energy even with this complex roofing material.

For more insights on optimizing your solar installation, check out our guide on adjusting solar panel tilt for seasonal efficiency . If you’re considering alternatives, explore the benefits of ground-mounted vs. roof-mounted solar panels .

Remember, while DIY installation can be rewarding, complex setups like this often benefit from professional expertise. Always prioritize safety and consult with experts when in doubt.

By understanding the unique properties of polycarbonate roofs and adapting your installation techniques accordingly, you can overcome the challenges and successfully integrate solar power into your energy solution.
