Introduction
A solar power station designed for alternating current (AC) output consists of several essential components that work together to convert solar energy into usable electricity.

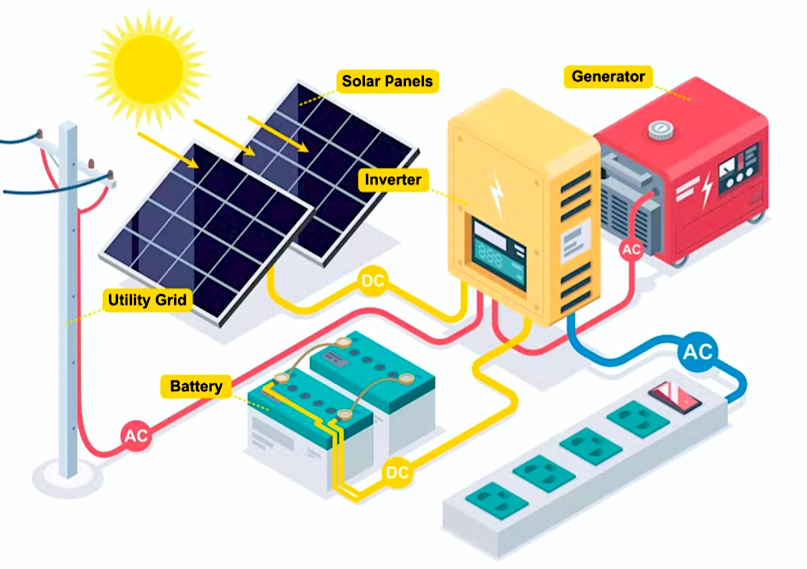

Here’s a breakdown of the key components:
1. Solar Panels
Solar panels, also known as photovoltaic (PV) panels, are the primary component of any solar power system. They capture sunlight and convert it into direct current (DC) electricity through the photovoltaic effect. The efficiency and quality of solar panels determine the overall performance of the solar power station.
2. Charge Controller
The charge controller regulates the voltage and current coming from the solar panels to the batteries. Its main function is to prevent overcharging and deep discharging of the batteries, which can prolong their lifespan. Charge controllers are available in two main types: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT), with MPPT being more efficient.
3. Batteries
Batteries store the electricity generated by the solar panels for later use, providing power during periods of low sunlight or at night. In AC solar power stations, batteries are charged with DC electricity and later converted to AC for use in household appliances. The capacity and type of batteries used affect the storage capabilities and overall efficiency of the system.
4. Inverter
The inverter is a critical component in an AC solar power station. It converts the DC electricity stored in the batteries into AC electricity, which is the standard form of electricity used in most homes and businesses. Inverters come in different types, including pure sine wave and modified sine wave inverters, with pure sine wave inverters providing higher quality and more stable AC output.
5. Surge Protection and Lightning Protection Components
Surge protection devices and lightning arresters are essential for protecting the solar power station from voltage spikes and lightning strikes. These components safeguard the system’s electrical components from potential damage, ensuring the longevity and reliability of the entire installation.
6. Backup Generator
A backup generator serves as an additional power source in case of extended periods of low sunlight or system failure. It provides a reliable backup to ensure that critical loads remain powered, especially in off-grid systems or areas with unreliable grid connections.
Conclusion
An AC solar power station is a complex system comprising various components that work together to convert solar energy into usable electricity. Each component plays a crucial role in ensuring the efficiency, reliability, and safety of the system. Understanding these components is essential for designing and maintaining an effective solar power station.
